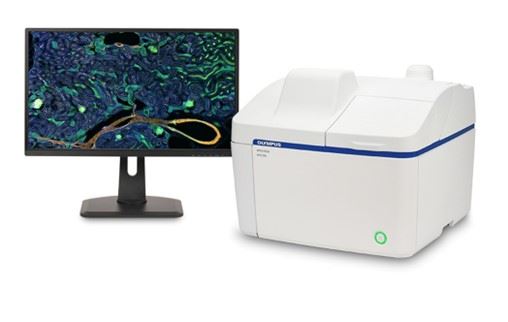

APEXVIEW APX100 Benchtop Fluorescence Microscope (2024)

Benchtop widefield fluorescence microscope equipped with monochromatic and color cameras. Suitable for variety of sampletypes as well as live-cell experiments.

🔬 4 Objectives:

  • 4x Universal Plan Extended Apochromat

  • 20x Long WD (for plastic vessels)

  • 20x Universal Plan Extended Apochromat

  • 60x Universal Plan Extended Apochromat (oil immersion)

🎨 Filter Cubes: DAPI, GFP, Cy3, Cy5, Cy7, mCherry (Texas Red)

📷 Cameras: High-end sCMOS monochrome camera and Color camera – 1/1.8 inch, 6.41 MP, rolling shutter

📸 Imaging Modes Supported: Brightfield, Phase Contrast, Fluorescence and a unique Gradient Contrast.

🌡️ Stage Top Incubator System: The system includes an integrated CO₂ mixer with an adjustable concentration range of 5% to 20%, along with passive humidity control and condensation protection. It supports a temperature range of 30°C to 40°C and is compatible with a variety of vessels, including multi-well plates, 35 mm and 60 mm Petri dishes, chambered slides, and standard glass slides.
