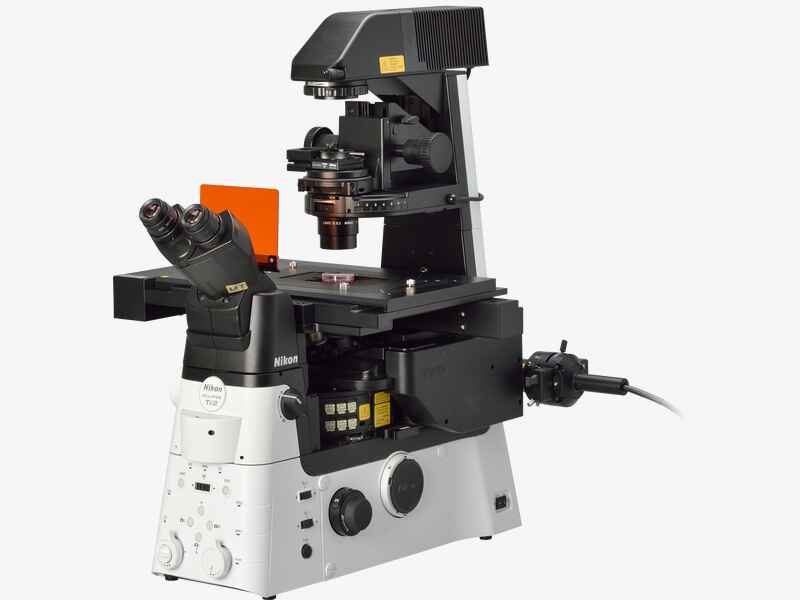

Nikon ECLIPSE Ti2-E Advanced Microscopy System
High-Resolution Imaging & Live-Cell Analysis Workstation
The Nikon Ti2-E is a fully motorized inverted microscope designed for maximum stability, precision, and multi-dimensional imaging .
Imaging Techniques & Fluorescence
- Brightfield – High-clarity morphological observation
- DIC (Differential Interference Contrast) – High-contrast imaging of transparent specimens
- Epi-Fluorescence – High-sensitivity detection of fluorescent markers
๐๏ธ Motorized Filter Turret
Equipped with a 5-position motorized turret containing high-performance fluorescence filter cubes for multi-channel imaging:
๐ฆ DAPI | ๐ฉ FITC | ๐ง Cy3 | ๐ฅ Cy5
โ๏ธ Microscope Body & Optical Precision
- Fully Motorized System – Built-in encoded Z-drive with 10 nm step size for precise 3D (Z-stack) imaging
- ๐ฏ Perfect Focus System (PFS) – Automatically compensates for thermal drift, maintaining sharp focus during long-term experiments
- 0.17 mm Coverslip Optimization – Optical path optimized for standard coverslips to ensure maximum resolution and minimal aberrations
๐ฌ Specialized Objectives
High-performance CFI Plan Apochromat Lambda D objectives with superior chromatic correction:
- ๐น 10X (N.A. 0.45, W.D. 4.00 mm) – Includes DIC slider
- ๐น 20X (N.A. 0.8, W.D. 0.80 mm) – High-resolution dry imaging with DIC
- ๐น 60X Oil (N.A. 1.42, W.D. 0.15 mm) – Oil immersion for maximum resolution ๐ข๏ธ with spring-loaded tip for sample protection
๐ก๏ธ Live Cell Incubation
Provides a stable environment for live-cell imaging:
- Maintains physiological temperature
- 5% COโ to preserve correct media pH
๐งซ Compatibility
Supports:
- 35 mm dishes
- Glass slides
Multi-well plates
