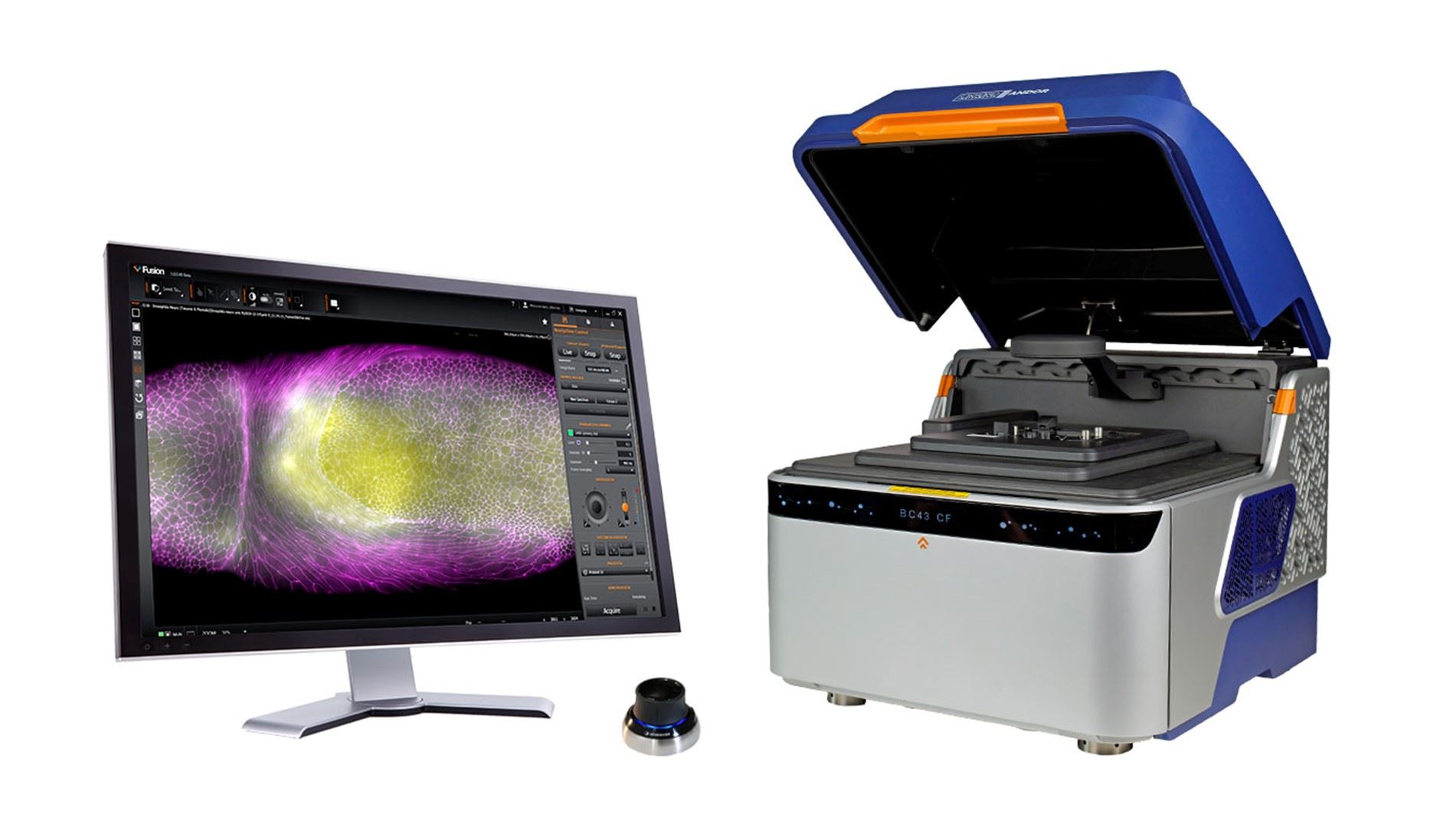

Andor BC43 - The Ultimate Benchtop Confocal Microscope

The Andor BC43 confocal spinning disk combines compact design with powerful and fast imaging capabilities to meet your microscopy needs.

Key features:

  • High-resolution and fast confocal imaging for cellular and subcellular studies.
  • Multi-modal functionality (confocal, widefield, and brightfield/DPC).
  • Streamlined user interface for easy operation.
  • 3D imaging to explore complex structures.
  • Supports live-cell imaging for dynamic studies.
  • Visualise and analyze 3D/4D images in the world’s leading interactive microscopy 3D image analysis software IMARIS











4 Objectives:

  • 2X air objective

  • 10X Plan Apo LD Air Object 0.45NA 4.0WD

  • 20X Plan Apo Lambda-D Air Object 0.8NA 0.8WD, CFI APO LWD

  • 40XWI LAMBDA S NA 1.15, WD 0.60mm –  water objective long distance

  • 60X Plan Apo LD Oil Objective 1.42NA 0.15WD – oil objective

🎨4 laser lines - 405nm 488nm 561nm and 638nm

📷 Camera: ZL41 Cell sCMOS
